User Guide : Whitebox-testing cosim

INTRODUCTION

Code Similarity Analysis is an approach for the scalable detection of similarity code clones between softwares, which are capable of detecting similar source codes in large software programs efficiently and accurately.

The research paper: V0Finder: Discovering the Correct Origin of Publicly Reported Software Vulnerabilities

USAGE

Step 1. Getting Started

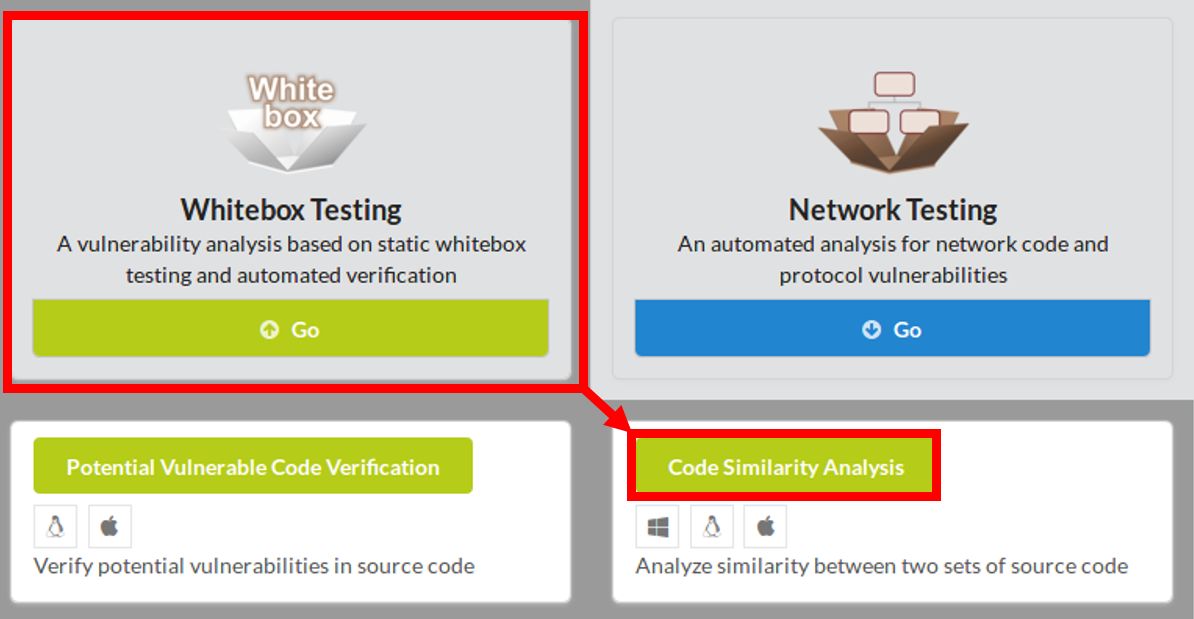

To begin Code Similarity Analysis, click Whitebox Testing in the main page of IoTcube, then proceed by clicking Code Similarity Analysis.

Step 2. Downloading hmark

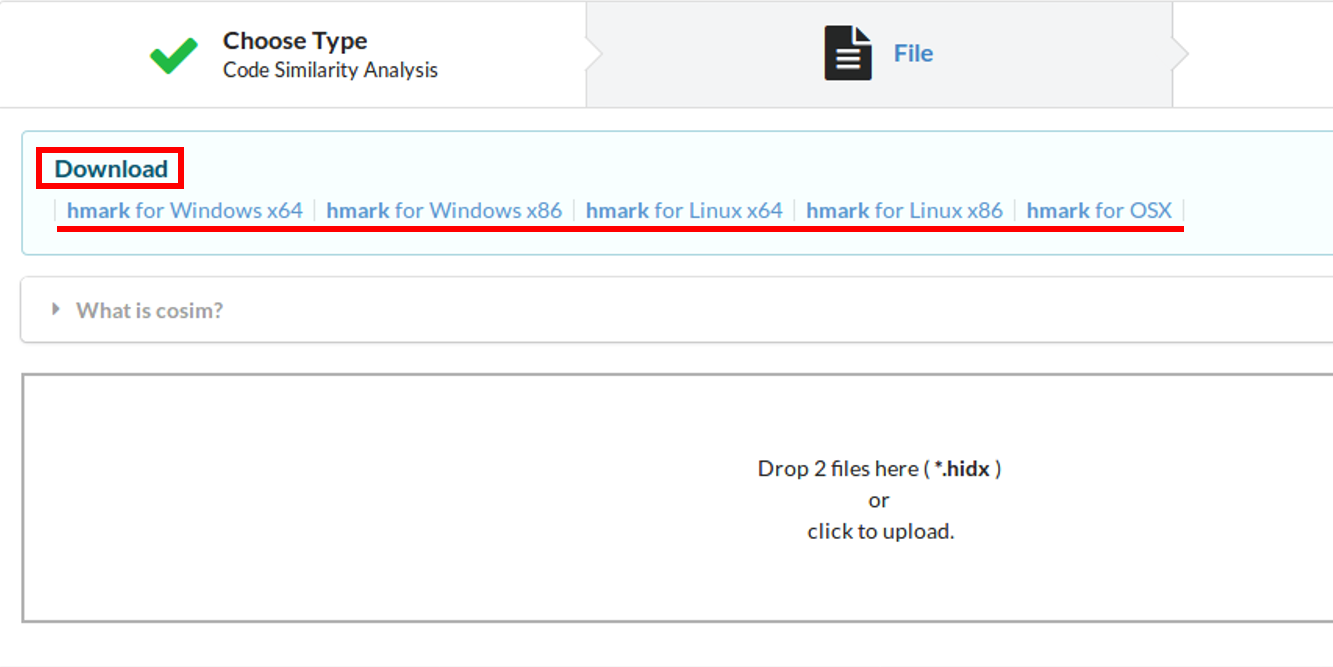

In the I/O page, download hmark, which is a preprocessor for the target program.

MS Windows (32 and 64 bit), Linux (32 and 64 bit), and Mac OSX are supported.

Step 3. Using hmark

With the downloaded hmark, you can convert your C/C++ program into a ".hidx" file by following the directions below.

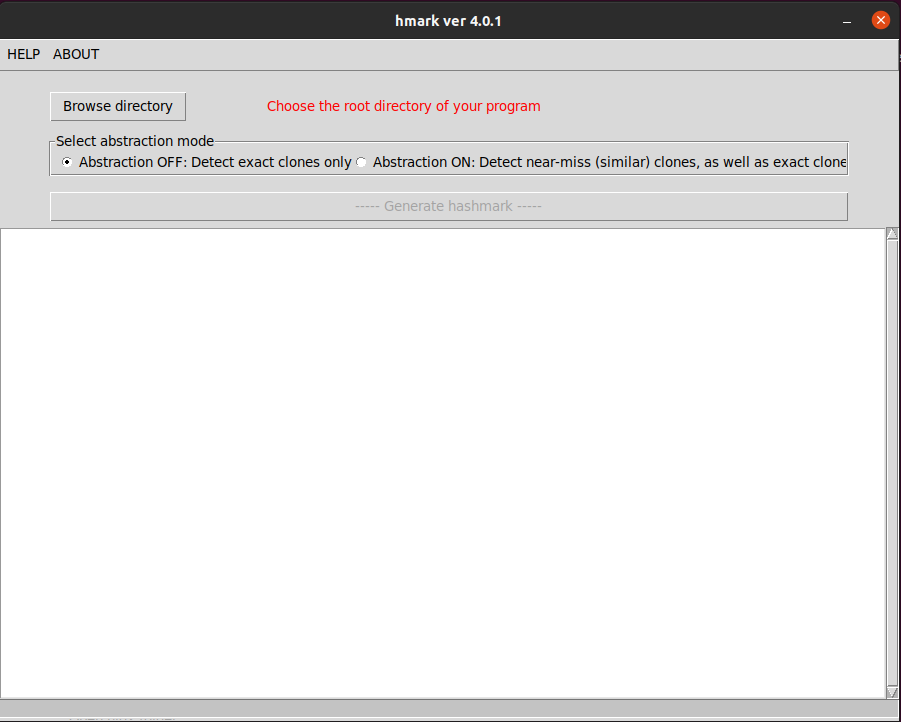

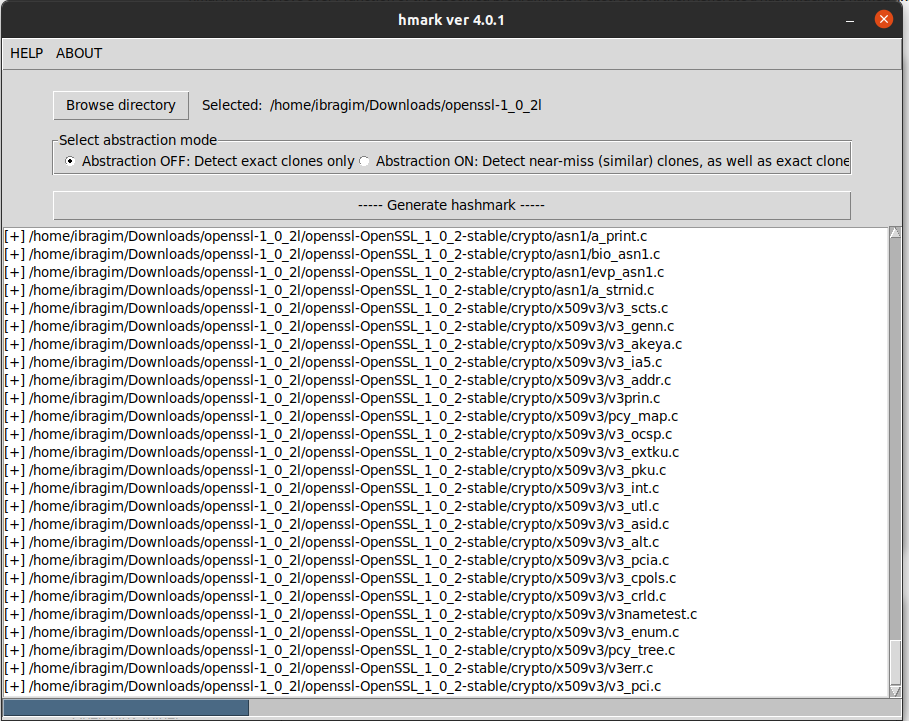

Browse directory: This button will show a standard directory dialog widget. Select the root directory of your program under which source code files are located.
Select Abstraction Mode: Select the abstraction mode. If you turn off the abstraction, hmark will only detect exact clones. If you turn on the abstraction, you can also detect near-miss (similar) clones, as well as exact clones. In other words, hmark will be resilient to modifications in formal parameters, variable names, data types, and function calls, by applying the abstraction.

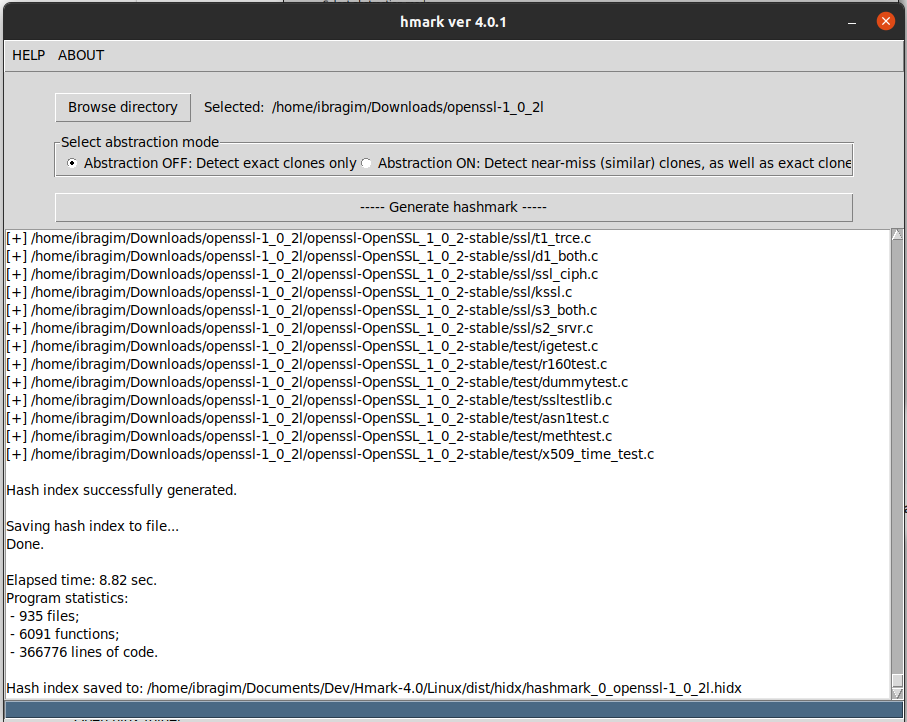

Generate Hashmark: After picking the root directory and selecting the abstraction mode, click generate hashmark. hmark will retrieve every function of the specified program, apply abstraction, then generate a hash index file named *.hidx.

You can check the progress through the listbox and the progress bar, while generating the hash index.

When hash index generation is complete, the file is stored under ~/PATH/TO/hmark/hidx/ directory.

Note that you have to make two hash index files for calculate similarity.

Step 4. Uploading Hash Index File

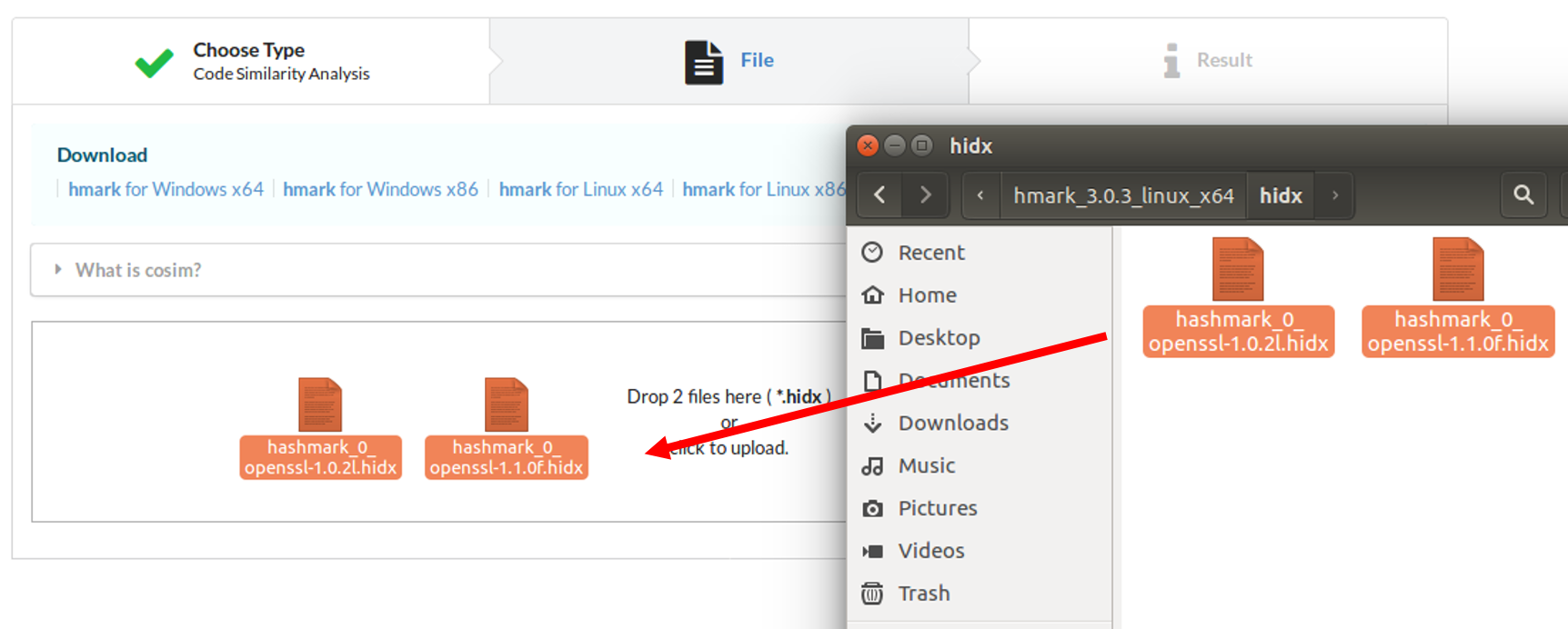

Upload the generated hash index files either by dragging & dropping the files into the upload box, or by selecting from a file dialog.

IoTcube automatically proceeds to the result page when the upload is complete.

Step 5. Browsing the Result

Code Similarity Analysis provides you with various types of analysis.

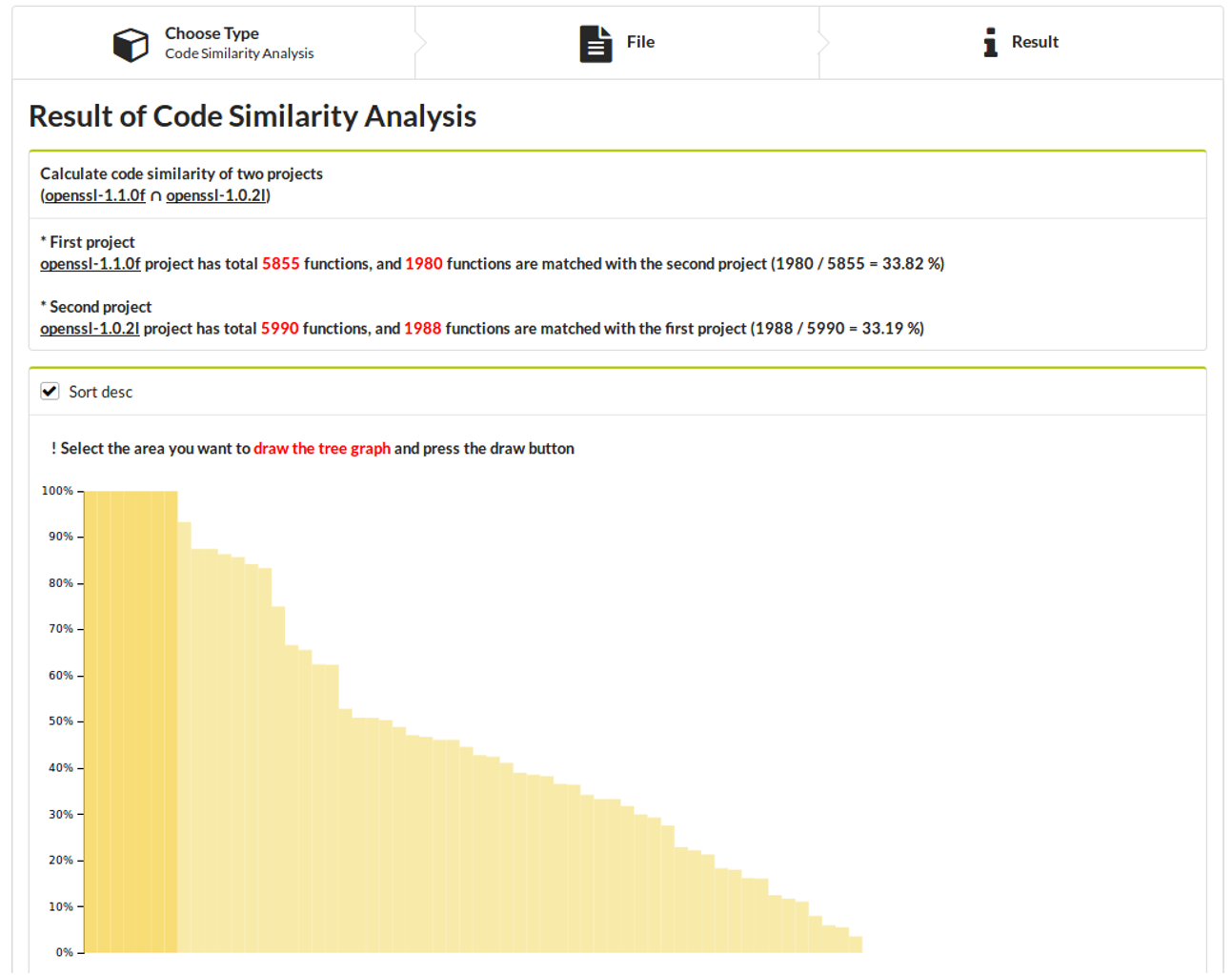

The number of total functions of two projects are shown, and also show the common functions between two projects. The bar graph shows how many functions in the first project match with the second project visually.

X-axis: The set of directories which at least have one C/Cpp files.
Y-axis: The similarity of each directories.(# of matched functions / # of total functions)

You can also select the area that you want to see using tree.

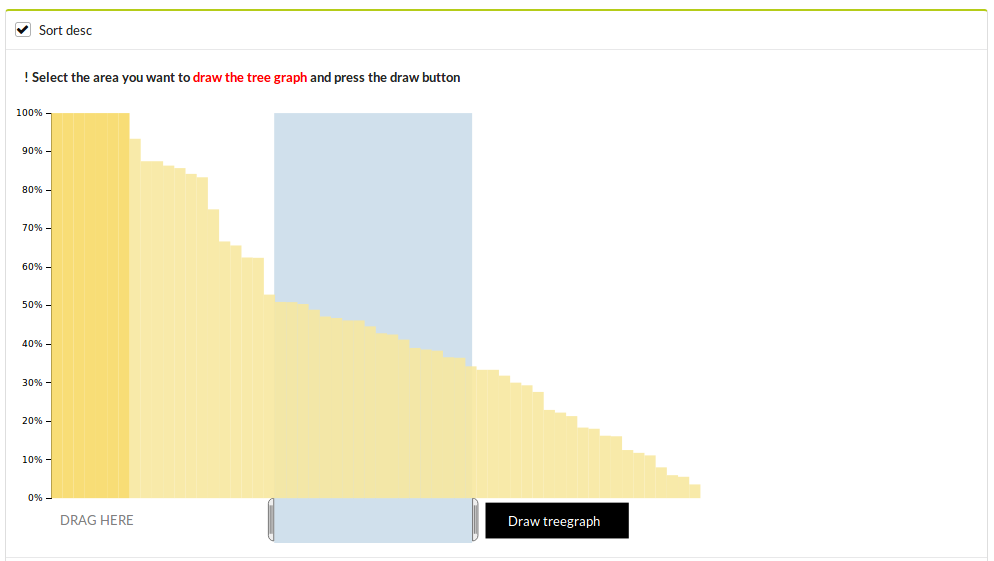

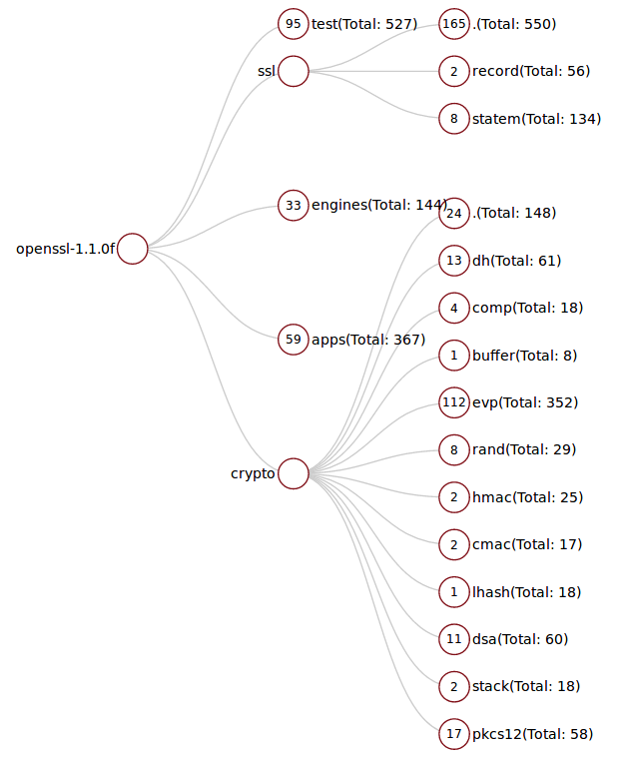

Select the area of bar graph and click the Draw tree button, then the tree is shown. Each leaf node corresponds to a directory, and the numbers in the leaf nodes denote the number of matched functions in the directory.

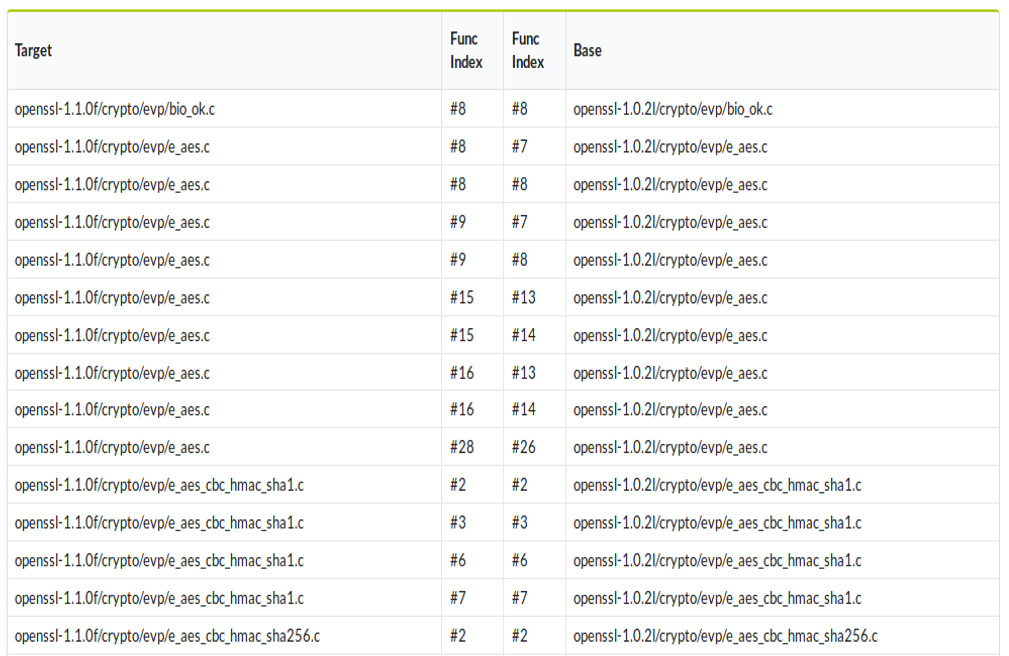

Clicking a leaf node, IoTcube shows a detailed information of the matched functions.
