User Guide : Whitebox Static Bug Finder DDInfer

INTRODUCTION

DDInfer is a static bug-finder for C/C++ project. It takes the project with source codes and build command such as clang, then performs a performance-boosted disjunctive analysis with state-selection heuristic that automatically constructed in data-driven approach.

USAGE

Step 1. Prepare Analysis

We provide ddInfer environment as a docker image.

Please install a docker engine (https://docs.docker.com/engine/) before prepare analysis.

ddinfer requires three components:

An entire project source folder (for simplicity, we'll refer to that folder as "project_folder")
A shell script file that installs build-prerequisites, "build_setup.sh". It can be an empty file, and the script will be executed on the ddinfer's docker container environment to install build-prerequisites.
A text file that includes final, single build/compile command, "build_command.txt". For example, "make" or "clang -c file.c" can be the contents of the "build_command.txt" file.

For example, building the entire "gzip-5.1.0" project typically requires two commands: "./configure; make". In this case, "project_folder" will refer to "gzip-5.1.0", while "build_setup.sh" will be a file containing the single command "./configure", and build_command.txt" will contain the single word "make".

As another example, the "bluez-5.55" project requires package installation, so "build_setup.sh" should contain two commands, apt-get install and configure : $ apt-get install -y libglib2.0-dev libdbus-1-dev libudev-dev udev libical-dev libreadline-dev systemd; ./configure --prefix=/usr --mandir=/usr/share/man --sysconfdir=/etc --localstatedir=/var and "build_command.txt" should contain a line with single command "make". Installation command like "make install" is unnecessary.

NOTE: If you follow above example, do not use "CRLF" (\r\n) character instead of "LF" (\n) character for newline character, which might be appeared by drag-copy-paste above commands. If not, you might suffer with unwanted characters such as "\r" in "build_setup.sh" file or "^M" in generated "bluez-5.55/config.h" file. To seek any suspicious character such as ^M exists in build_command.txt in vim editor, use ":e ++ff=unix" command (refer to https://stackoverflow.com/a/10280014).

Step 2. Getting Started

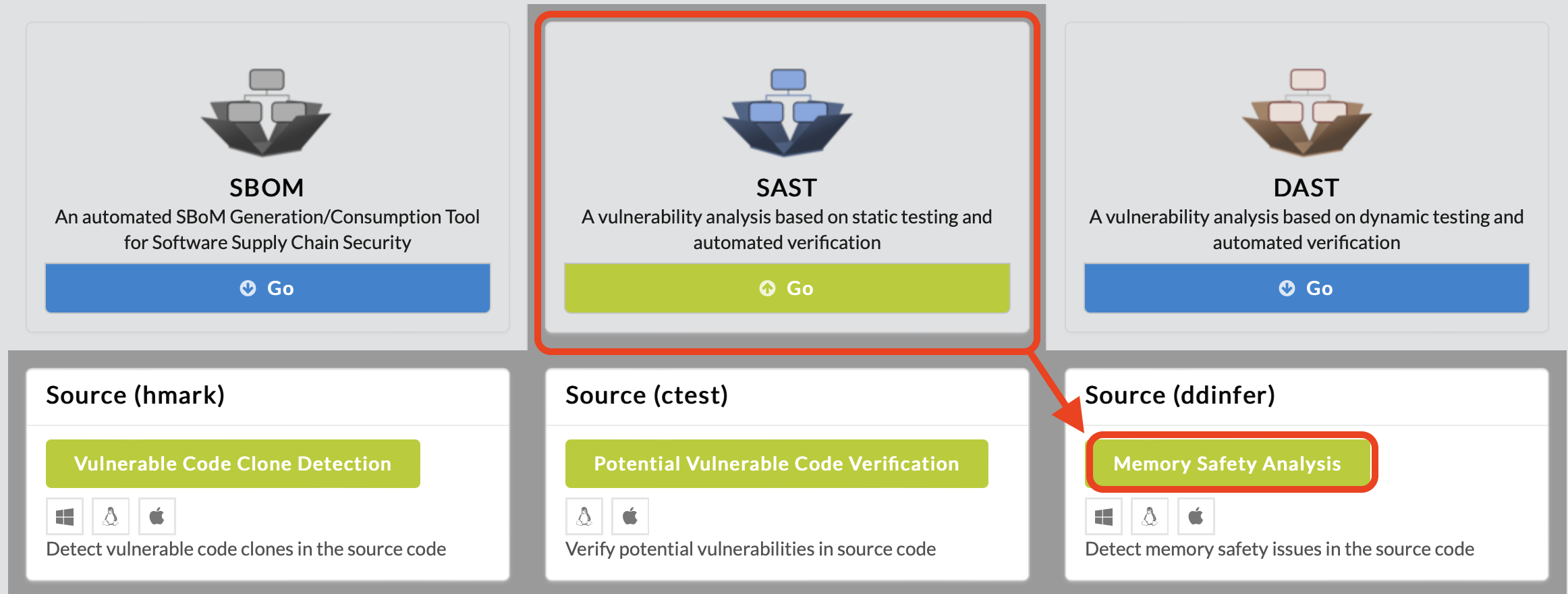

To begin memory safety analysis, click SAST in the main page of IoTcube, then proceed by clicking Memory Safety Analysis.

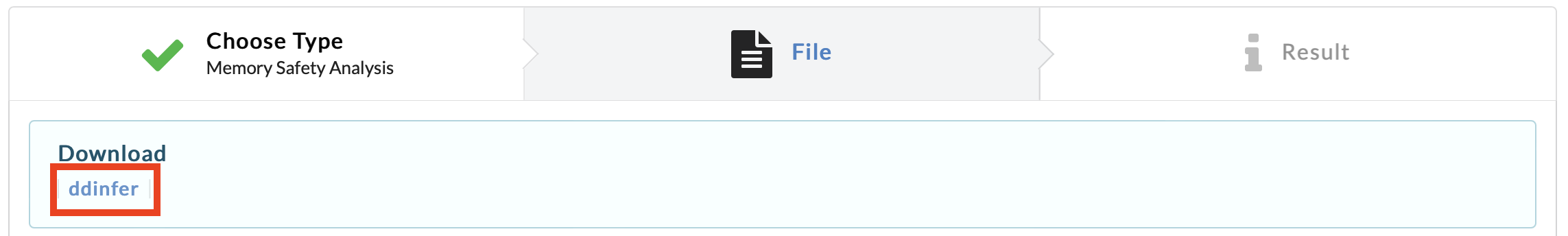

In the following page, download ddinfer.tar (docker image), which is a virtual environment image contains ddinfer binary and its dependencies installed.

Step 3. Using ddinfer - Prepare ddinfer docker container

First, load the docker image ddinfer_1_0_0.tar.

$ docker load < ddinfer_1_0_0.tar

The loaded image's name will be "ddinfer" and its tag has some digits of version, such as "1.0.0". Check the loaded image's name using the command "docker image list".

$ docker image list

Second, create docker container using image's name and tag value.

$ docker run --cap-add=SYS_TIME -dit ddinfer:1.0.0

Created docker container has its own container-ID, such as "fafa1b45". Check the created container's ID using the command "docker ps -a".

$ docker ps -a

Lastly, copy prerequisites for ddinfer analysis to docker container.

$ docker cp project_folder fafa1b45:/project_folder
$ docker cp build_setup.sh fafa1b45:/build_setup.sh
$ docker cp build_command.txt fafa1b45:/build_command.txt

Step 4. Using ddinfer - Run ddinfer

First, get into the docker container's shell.

$ docker exec -it fafa1b45 /bin/bash

In docker container shell, run /ddinfer.sh script with the project_folder name.

$ source ddinfer.sh /project_folder

Report file "report.json" file will be located at the root directory after ddinfer analysis done.

After build-prerequisites installation and ddinfer analysis done, exit.

$ exit

Copy report file from docker container to local environment.

$ docker cp fafa1b45:/report.json report.json

If you want to stop or remove docker container resource, use "docker stop fafa1b45" or "docker rm fafa1b45" command.

$ docker stop fafa1b45
or
$ docker rm fafa1b45

Step 5. Uploading log file

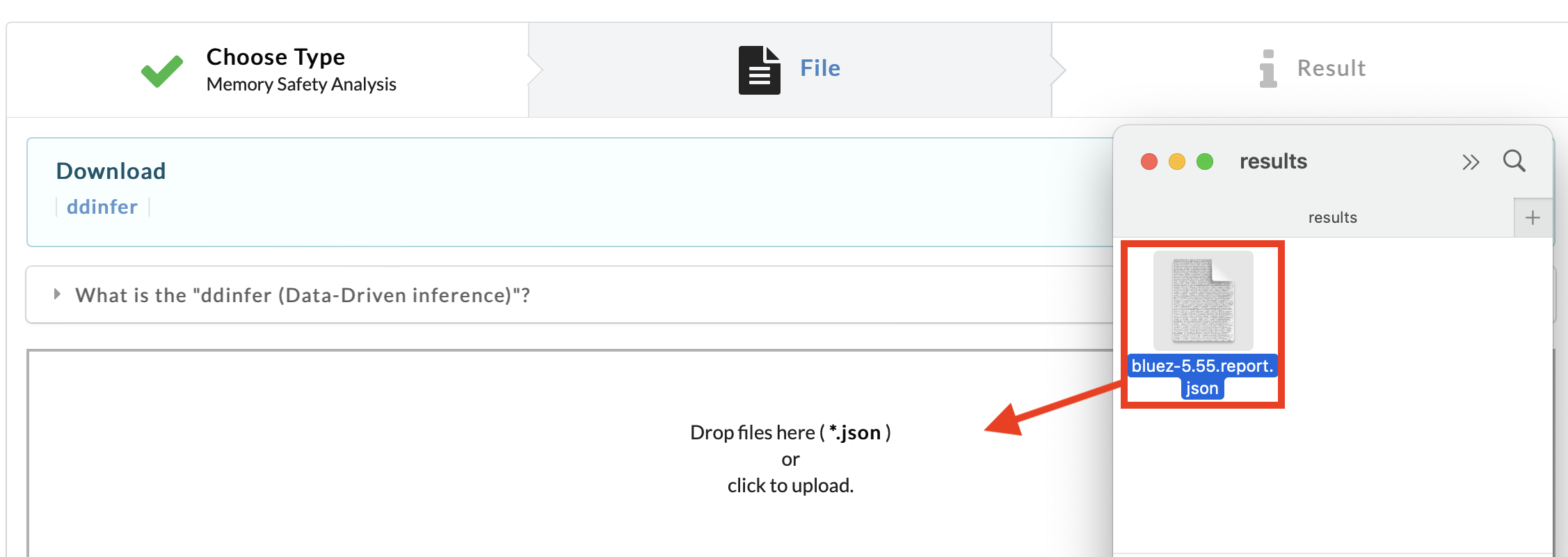

Upload the generated report.json file either by dragging & dropping the file into the upload box, or by selecting from a file dialog.

IoTcube automatically proceeds to the result page when the upload is complete.
