User Guide : Blackbox-testing evmfuzz

INTRODUCTION

evmfuzz leverages static and dynamic data-flow analyses to enhance the effectiveness of fuzzing. evmfuzz support EVM bytecode(compiled by solc-0.4.25).

evmfuzz can find 13 types of bug class.

USAGE

Step 1. Getting Started

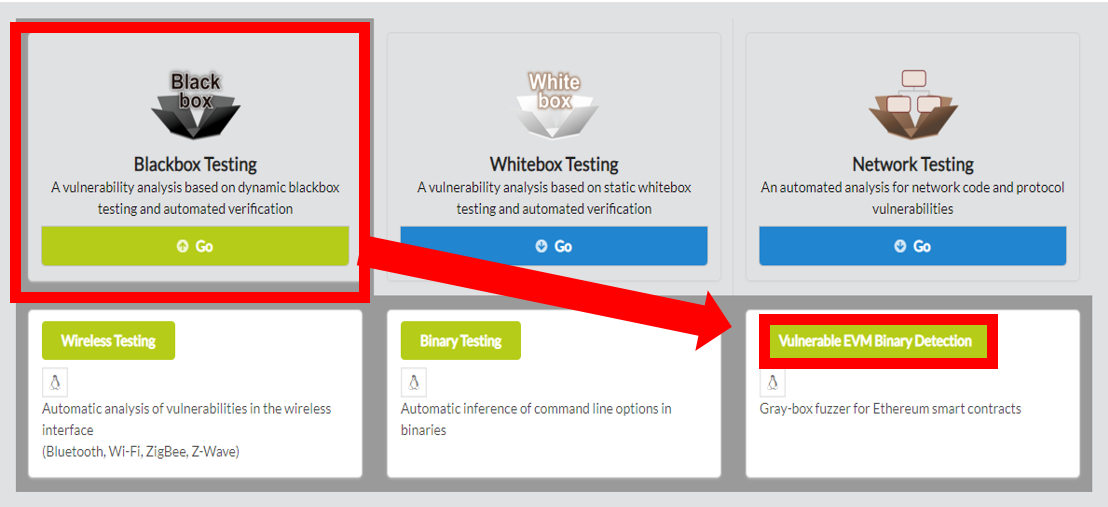

evmfuzz, click on Blackbox Testing in the main page of IoTcube, then proceed by clicking on Vulnerable EVM Binary Detection.

Step 2. Downloading evmfuzz

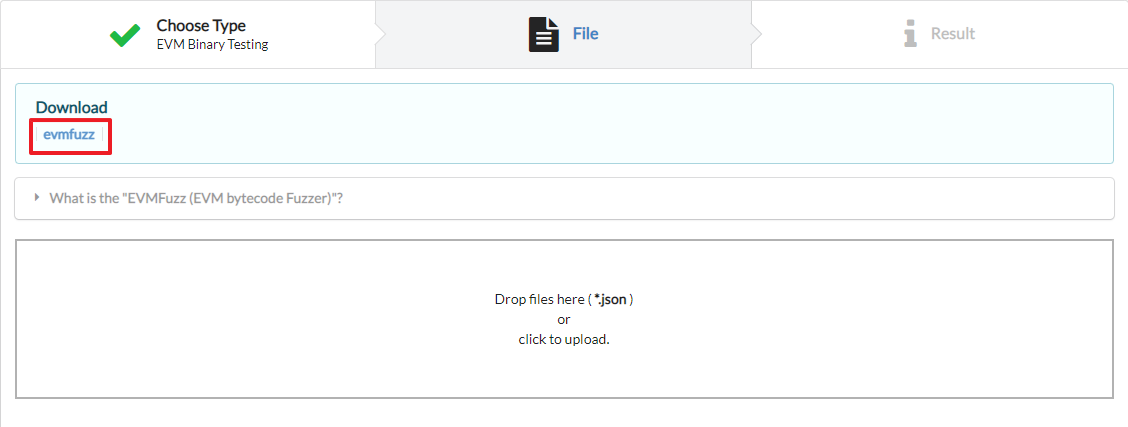

In the I/O page, download evmfuzz

Step 3. Environment Setting

evmfuzz can be used on any operating system that supports dotnet5.0.

To run, dotnet 5.0 runtime must be installed.

It can be downloaded at https://dotnet.microsoft.com/en-us/download/dotnet/5.0

Ubuntu : https://docs.microsoft.com/ko-kr/dotnet/core/install/linux-ubuntu

If the operating system is ubuntu 20.04, you can download it as follows.

$ wget https://packages.microsoft.com/config/ubuntu/20.04/packages-microsoft-prod.deb –O packag-es-microsoft-prod.deb

$ sudo dpkg –i packages-microsoft-prod.deb

$ rm packages-microsoft-prod.deb

$ sudo apt-get update

$ sudo apt-get install -y aspnetcore-runtime-5.0

Step 4. Using evmfuzz

After completing the dotnet execution environment, unzip the downloaded evmfuzz.

You can run EVM fuzzing with EVMFuzz.dll with the following command.

$ dotnet EVMFuzz.dll fuzz -p {bytecode file} -a {abi file} -t {time limit} -o {output dir}

In that command, -p {bytecode file} means the EVM bytecode -a {abi file} means the abi specification -t {time limit} means fuzzer execution time -o {output dir} is the directory name to save the fuzzing output. * EVMFuzz is designed based on EVM binaries compiled with version 0.4.25 of the solidity compiler.

Example

EVMFuzz provides example bytecode files and abi files such as AF, AW, BD, CH, RE that can be used for EVM vulnerability analysis in the example folder 1. If you use the example RE bug EVM Binary and the abi file of the file, input as follows. (fuzzing time limit is 10 seconds, output dir is testRE)

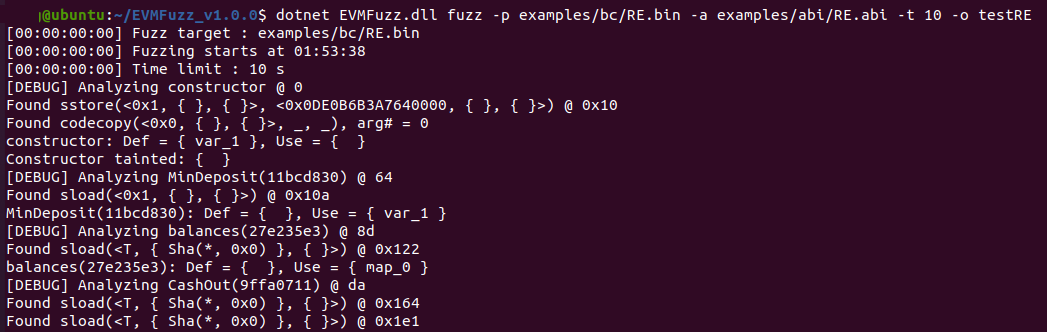

$ dotnet EVMFuzz.dll fuzz -p examples/bc/RE.bin -a examples/abi/RE.abi -t 10 -o testRE

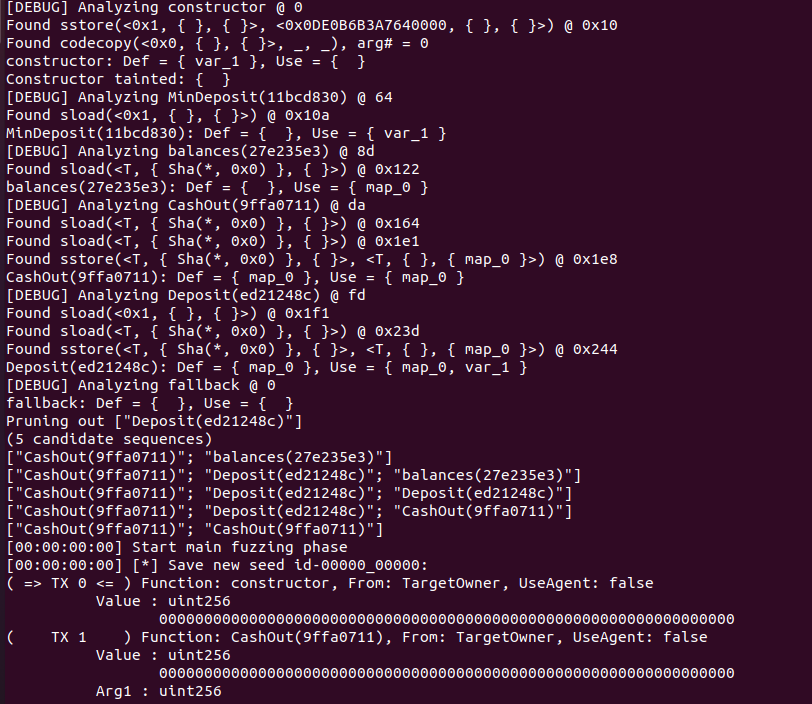

2. Then the fuzz testing on the target Re.bin will start.

3. During fuzz testing, the data flow of smart contract is analyzed with static analysis and fuzzed by using it. If the Fuzz testing finds a bug, save it to the bug seed.

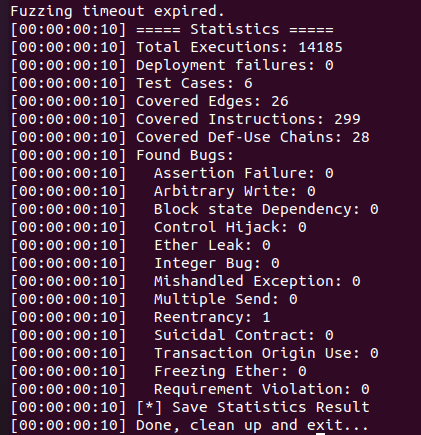

4. When the set time (time limit) has elapsed, the fuzz testing is terminated, and result is printed. - 'Total Executions' is the total number of executions of the target program (contract). - 'Deployment failures' is the number of times the deploy failed when trying to fuzz.

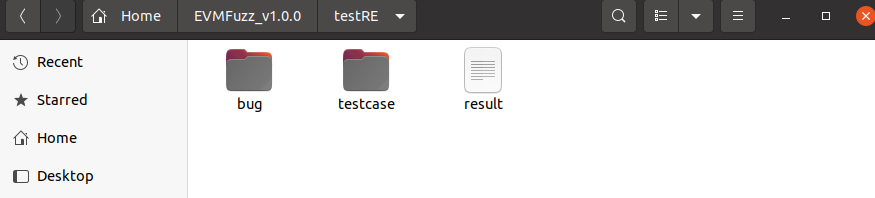

5. When Fuzz testing is finished, the output(testRE) folder is created. The result statistics, bug folder, and testcase folder are created in it. The bug folder contains the input that caused bugs, and the testcase folder contains the input that increases the edge coverage during fuzzing.

Step 5. Uploading the log file (.log) to IOTCUBE

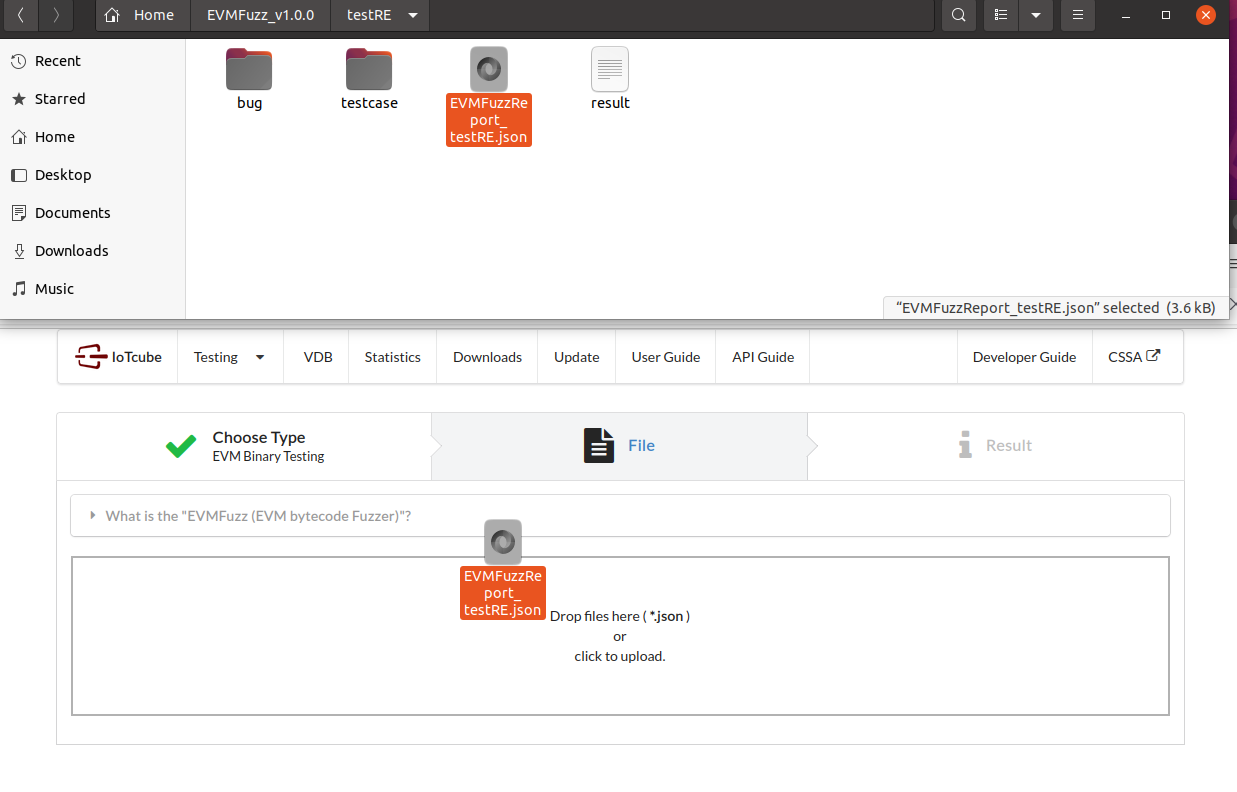

1. After fuzz testing, open the output folder and upload the log file to IOTCUBE for online fuzzing details visualization.

The log file to be uploaded to IOTCUBE was made based on the fuzzing test result, and can be created using a python script.

$ python3 report.py testRE

Log file: testRE(outputdir)/EVMFuzzReport_XXXX.json

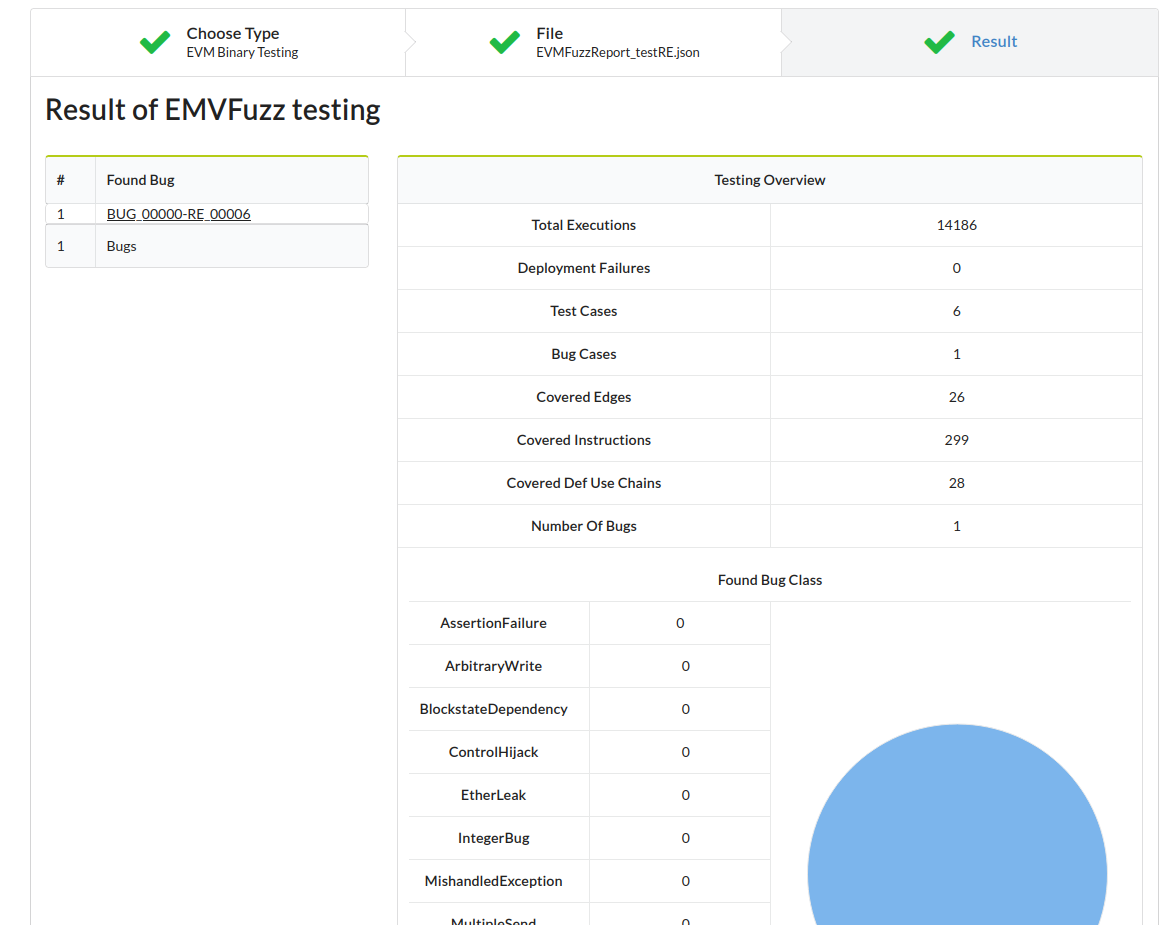

2. IOTCUBE automatically proceeds to the result page when the file (logfile) upload is completed.

3. Visualization details are available online on IOTCUBE.

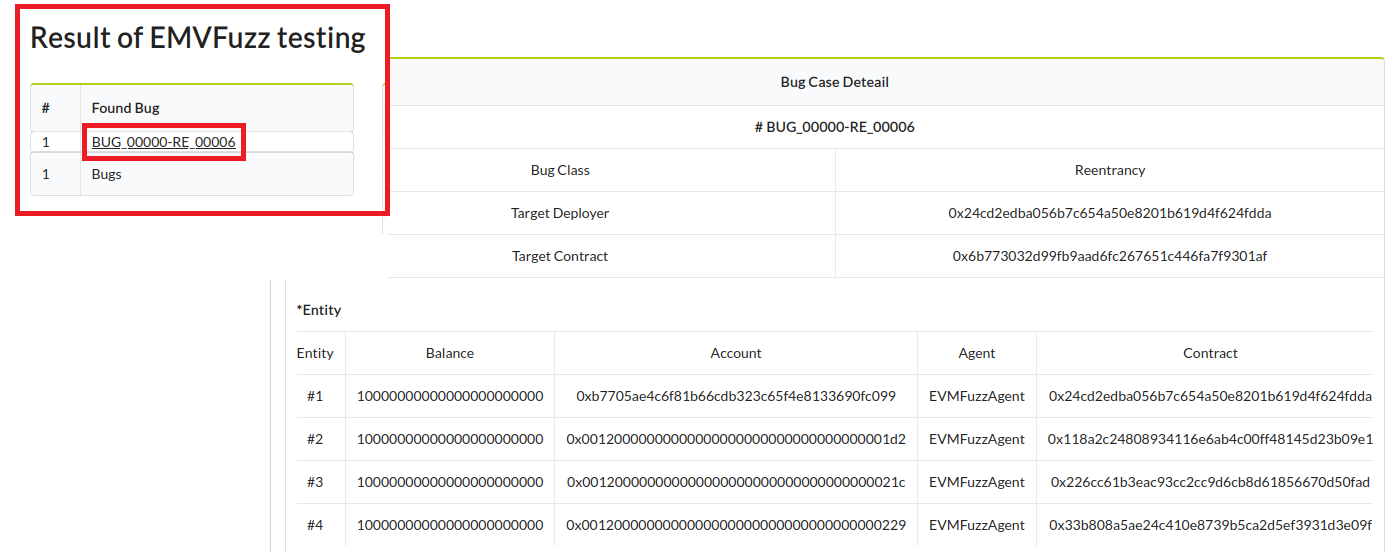

4. Each bug case details can be viewed by clicking on the Found bug's name.
